Using SyncVars to Sync Colors

Synchronizing color with synchronized variables!

We've got quite a few things synchronized now, but how might you go about synchronizing a specific variable in one of your scripts? SyncVars are one answer! A SyncVar is a FishNet generic type that can be used within NetworkBehaviours that automatically synchronize their value from the server to all clients.

Let's liven up the colors in our game and synchronize them with SyncVars.

1

Creating a script to sync color

Create a new script called SyncMaterialColor. This will be used to synchronize the Material color of our MeshRenderers.

SyncMaterialColor.cs

using FishNet.Object;
using FishNet.Object.Synchronizing;
using UnityEngine;

[RequireComponent(typeof(MeshRenderer))]
public class SyncMaterialColor : NetworkBehaviour
{
    public readonly SyncVar<Color> Color = new SyncVar<Color>();

    private void Awake()
    {
        Color.OnChange += OnColorChanged;
    }

    private void OnColorChanged(Color previous, Color next, bool asServer)
    {
        GetComponent<MeshRenderer>().material.color = Color.Value;
    }
}

This simple script has a Color variable of the type SyncVar<Color>. It needs be set to readonly, but don't worry, we can still get and set its Value.

Setting your SyncVar as readonly will cause it to be hidden from the Unity Inspector. You can read about a work-around for this here.

In Awake we subscribe to the SyncVar's OnChange event. This event is very useful as it will be invoked as soon as the SyncVar changes, even on a client when the server changes it and it's synced.

OnColorChanged is our method that we subscribed to the OnChange event. This method simply gets the MeshRenderer and sets its material color to the SyncVar's Color Value, thus updating the visuals to match on all devices.

You may want to read more about SyncVars and the other available SyncTypes that FishNet has, such as SyncLists. You can find those pages here.

2

Add the script component

Now add your newly created script to your Cube Prefab. The script won't currently do anything unless we change the Color SyncVar in it, so let's do that next.

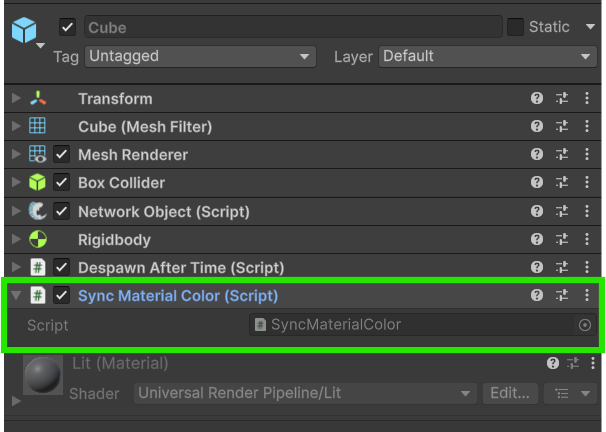

The Sync Material Color component added

3

Give the cubes random colors

Let's give the cubes some color now as soon as we instantiate them.

Reopen the PlayerCubeCreator.cs script and make the following addition after the call to Instantiate and before the call to Spawn:

obj.GetComponent<SyncMaterialColor>().Color.Value = Random.ColorHSV();

Here is the complete script with the change made:

Old Input System

PlayerCubeCreator.cs

using FishNet.Object;
using UnityEngine;

public class PlayerCubeCreator : NetworkBehaviour
{
    public NetworkObject CubePrefab;

    void Update()
    {
        // Only the local player object should perform these actions.
        if (!IsOwner)
            return;

        if (Input.GetButtonDown("Fire1"))
            SpawnCube();
    }

    // We are using a ServerRpc here because the Server needs to do all network object spawning.
    [ServerRpc]
    private void SpawnCube()
    {
        NetworkObject obj = Instantiate(CubePrefab, transform.position, Quaternion.identity);
        obj.GetComponent<SyncMaterialColor>().Color.Value = Random.ColorHSV();
        Spawn(obj); // NetworkBehaviour shortcut for ServerManager.Spawn(obj);
    }
}

New Input System

This line of code gets the SyncMaterialColor component and sets the SyncVar Value to a random color as soon as it's instantiated. Once Spawn is called on the next line, FishNet will spawn this object for all clients with the color SyncVar state synced.

4

Test the synchronized cubes

Now all you need to do is run your game again and see if the cubes spawn with a random color and if that color is synchronized across the network.

Cube color synchronized!

Download the project files with these completed steps here, or explore the repository:

Source Files Repository
